Introduction

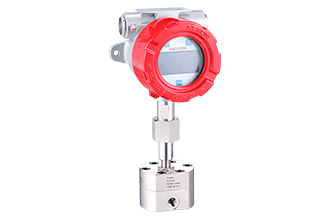

Explosion proof digital flow controller
Technical
Specification Table
Order No
Powered by | 12-30Vdc |
Analog output type | 0-20mA , 4-20mA |
Frequency output type | Output range: max 0-10KHz , Level: 0- voltage( TTL level, 0-10V level can be customized) |
Flowmeter medium temperature | -40…120 ℃, ( -100...240 ℃ can be customized) |
Ambient temperature | -40…60 ℃ |
Explosion-proof certification | EX d IIC T6 |
Explosion-proof standard | GB3836.1-2010, GB3836.2-2010 |
Material | Main Housing: Die-cast aluminum |
Probe housing: stainless steel 304 Windows: Glass | |
Seal: FPM | |
Degree of protection | IP67 |
Electrical Interface | M20×1.5 |
Order NO. | Type | series | output | Application |
BA1001 | BT210BAVA | With magnetic sensor | Linearized analog current output | Turbine flowmeter |
BA1002 | BT210BARA | With non-magnetic sensor | ||
BA2002 | BT210BAGA | With non-magnetic sensor | Gear flow meter | |
BA0002 | BT210BAOA | Split control meter | For use with pulse probes and connecting cables | |
BF1001 | BT210BAVF | With magnetic sensor | Linearized frequency output | Turbine flowmeter |
BF1002 | BT212BARF | With non-magnetic sensor | ||
BF2002 | BT212BAGF | With non-magnetic sensor | Gear flow meter | |
BF0002 | BT212BAOF | Split control meter | For use with pulse probes and connecting cables |
Application
-
Petrochemical IndustriesWith the rapid development of computer technology, the petrochemical instrument automatic control system is gradually developing in the direction of digitization, networking, modeling and intelligence. On the basis of developing the existing information system, petrochemical enterprises continue to deepen the comprehensive automation system of the enterprise, strengthen the application of the safety control system, and improve the basic automation and advanced control level of the enterprise to enhance the market competitiveness of the enterprise.
Learn more -
Hydraulic Iubrication Power
The invention of hydraulic systems has been applied in many fields, bringing convenience and improving work efficiency to various industries.
Learn more -
Aviation Industry
In the aerospace industry, flow measurement is a crucial link, which not only affects the performance and safety of aircraft, but also directly relates to the safety of personnel and equipment. Therefore, in order to ensure the development and safety of the aerospace industry, accurate flow measurement has become an indispensable task.
Learn more
